Description

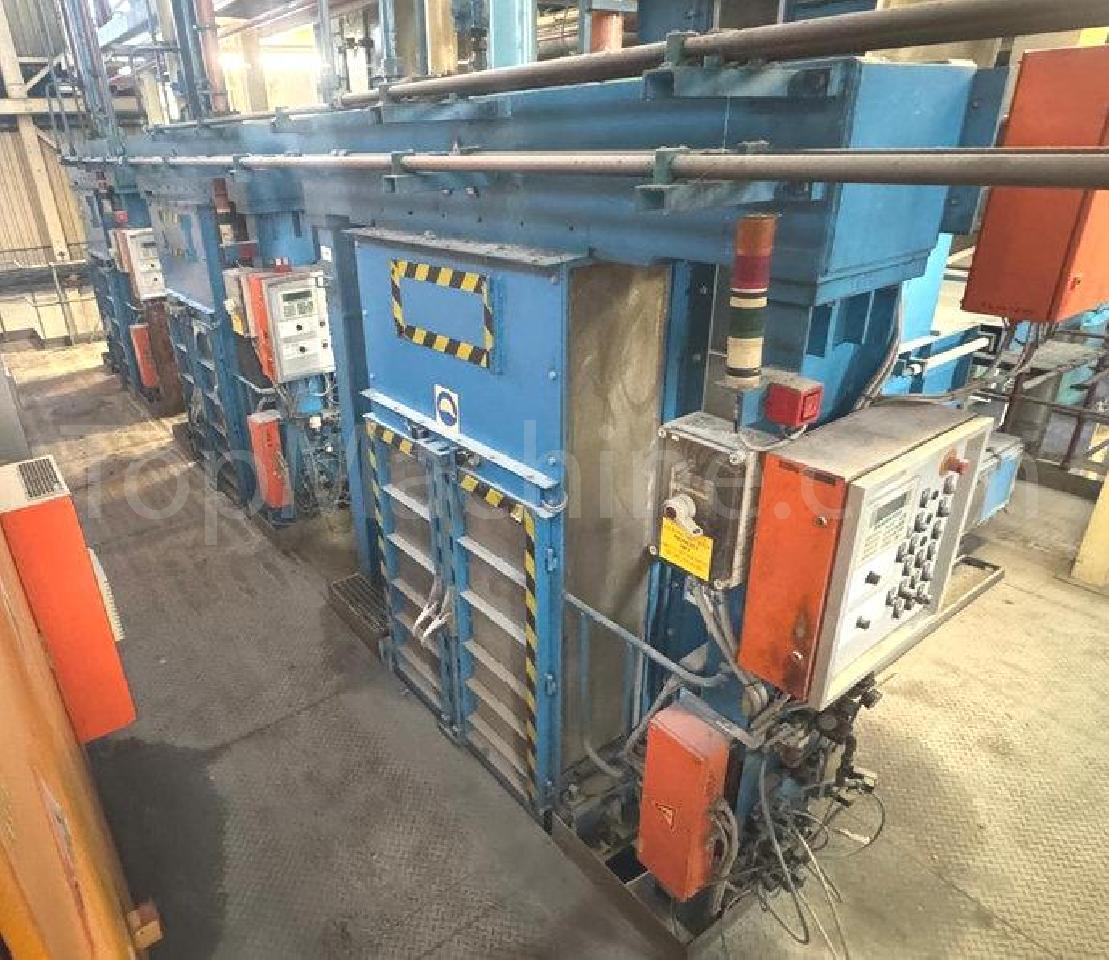

  • Automatic fibre baling system, out of production
  • The baling system is designed to work with three different fiber extrusion lines.

    Total output: 60 T per day

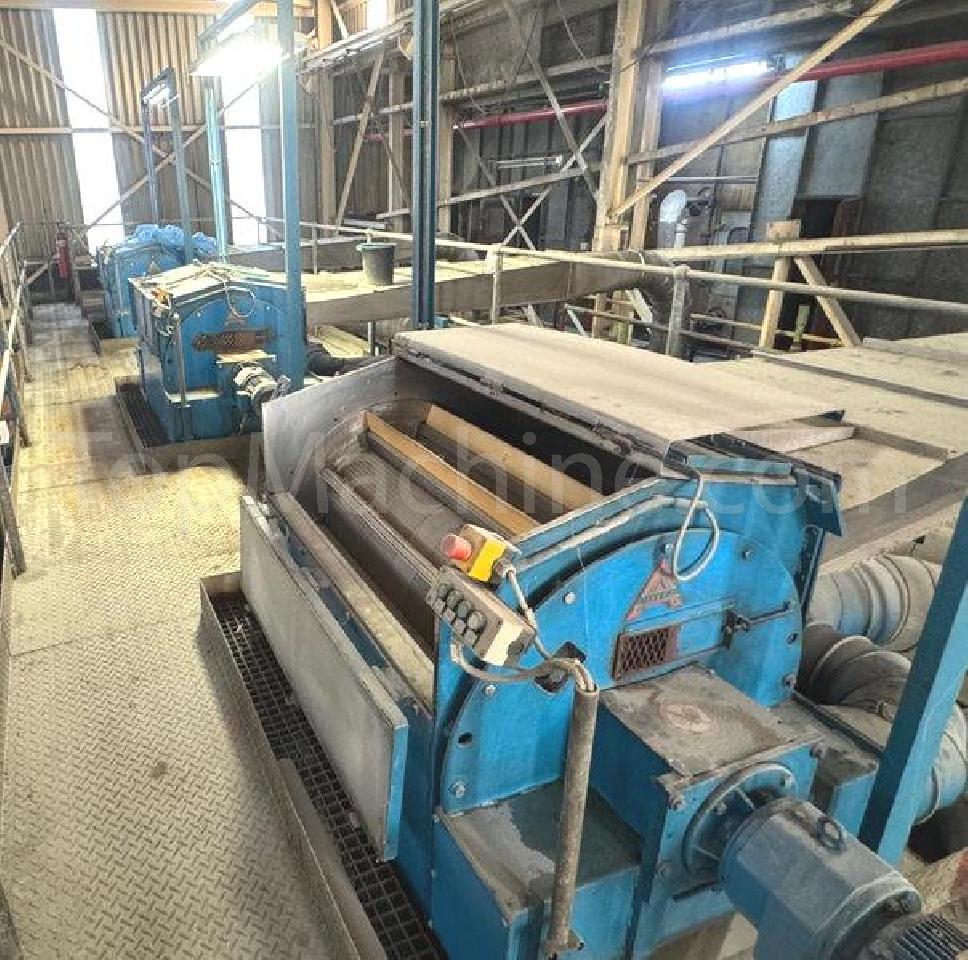

    Pre-Presses: 3 pcs
    Diameter: 225 mm x 1 cylinder
    Output: 92 lit/min
    Stroke: 2400 mm
    Power: 22 kW /each

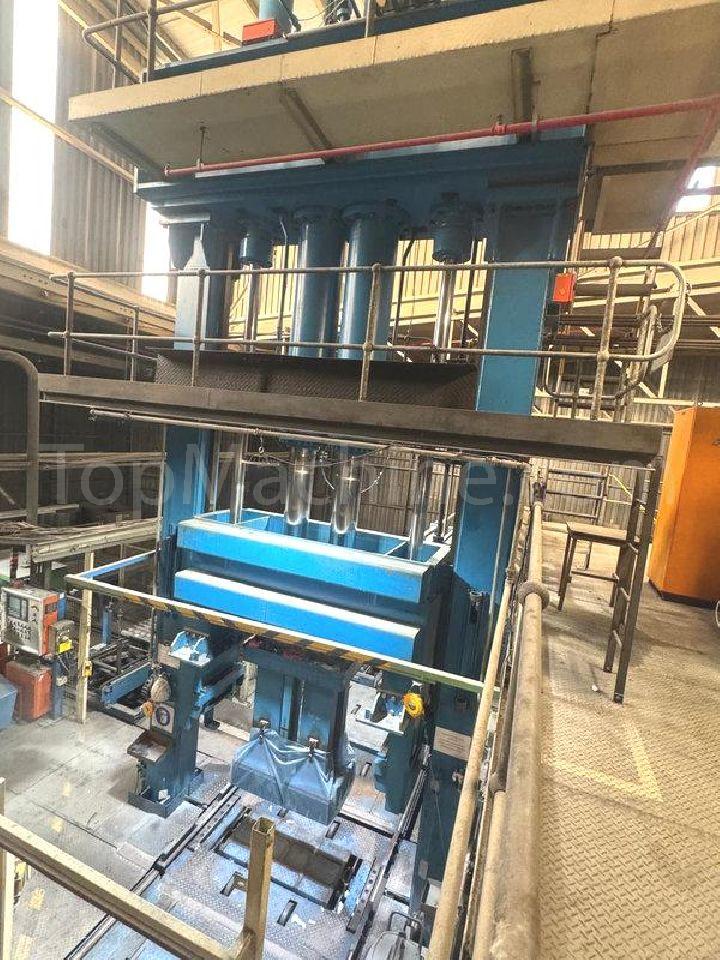

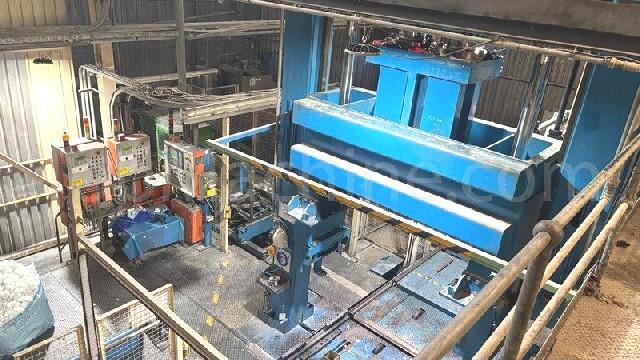

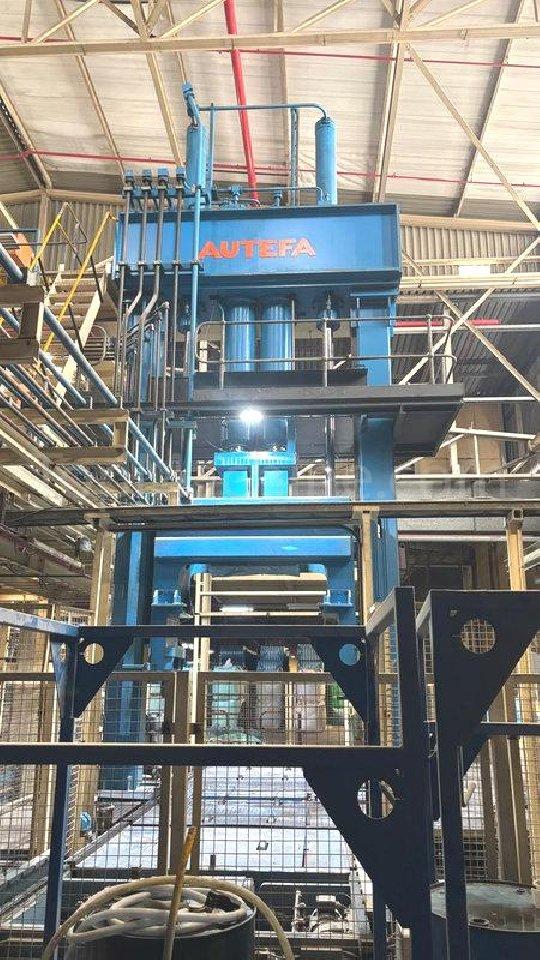

    Main press: 1
    Diameter: 350 mm x 2 cylinders
    Output: 497 lit/min
    Stroke: 1800 mm
    Power: 75 kW

    Containers: 6
    Fibre transport system: 3 pcs
    Includes: Weigher, condenser, fan, filters etc

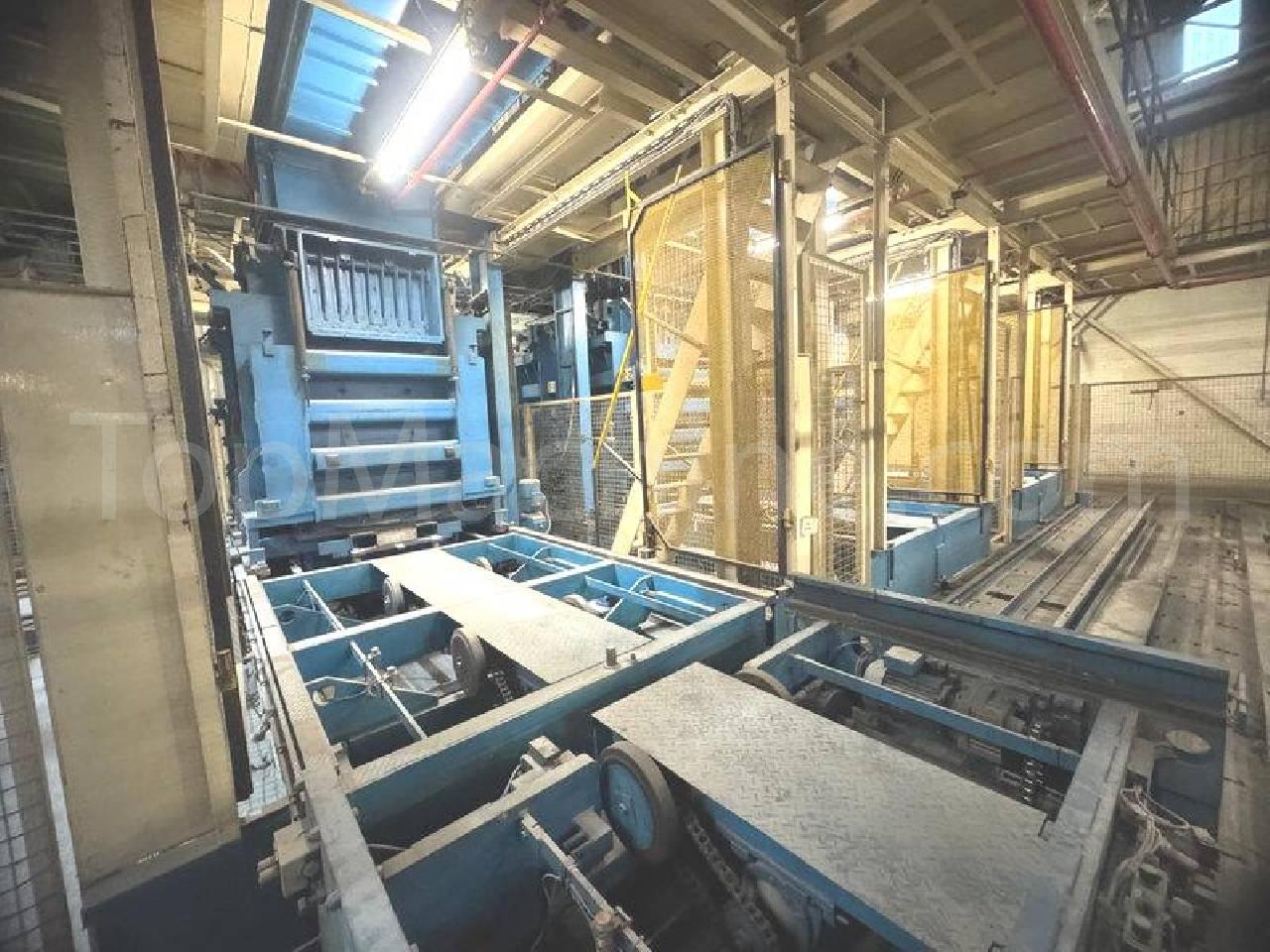

    Transport system for empty boxes and full boxes.
    Bale transport carriage.
    Hydraulic Plant complete with pumps.

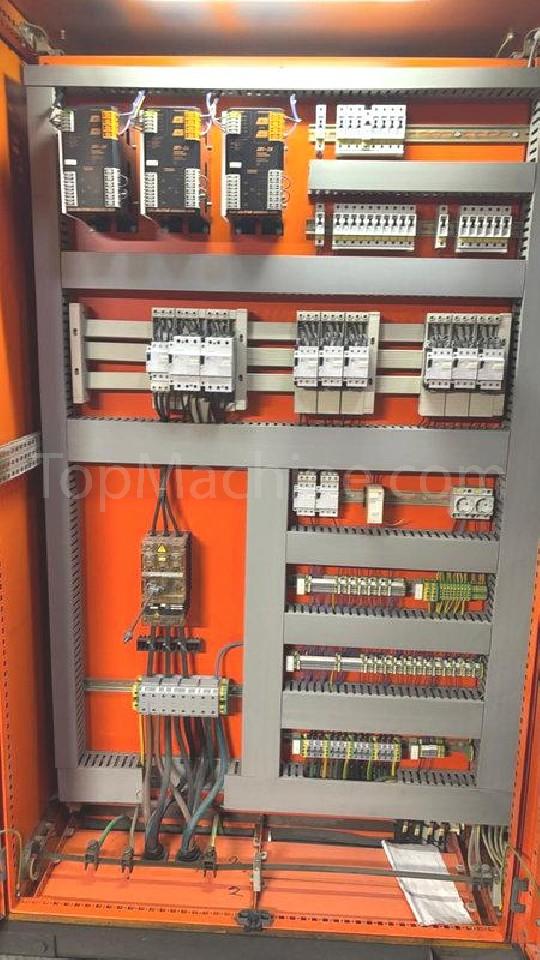

    Electrical cabinets and control system for each product to be baled.
