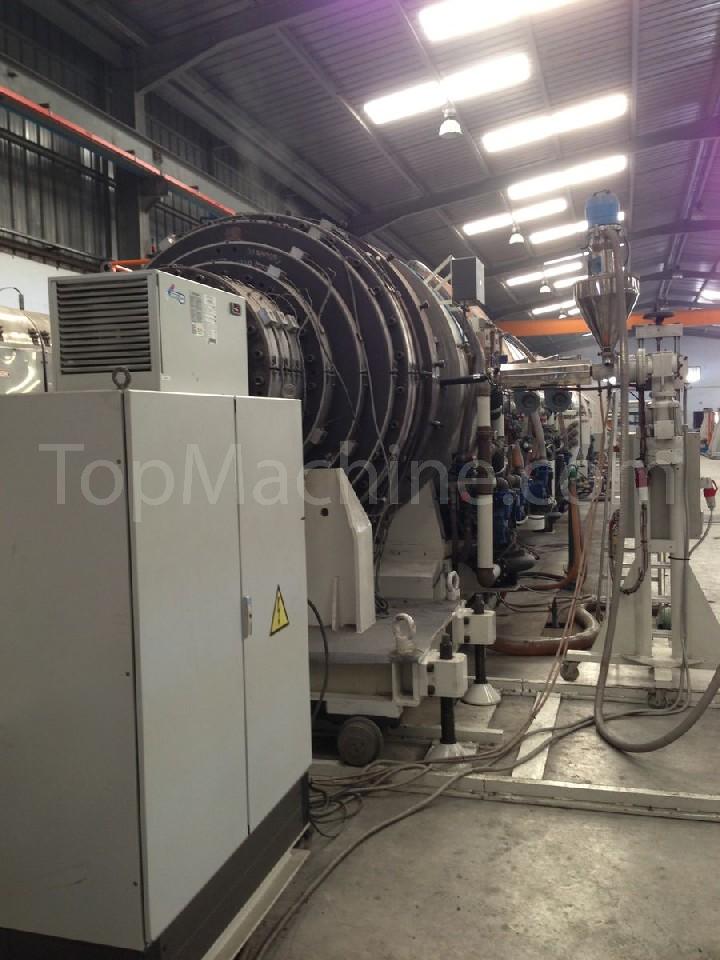

Periplast PE 1600, Year 2010

Ref.: 13655 PE/PP pipe line
Description: HDPE. 2000 kg/h. Up to 1600 mm

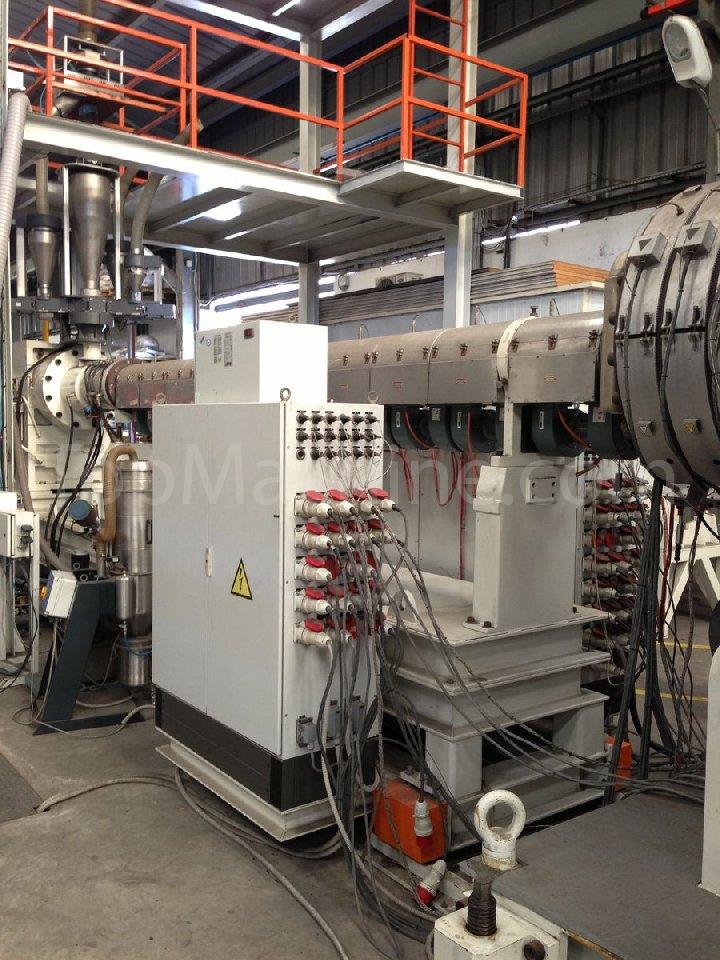

160 mm x 36D extruder
INOEX wall control thickness
630 to 1200 mm die head including tools
30 mm screw diam. co extruder for the stripes.

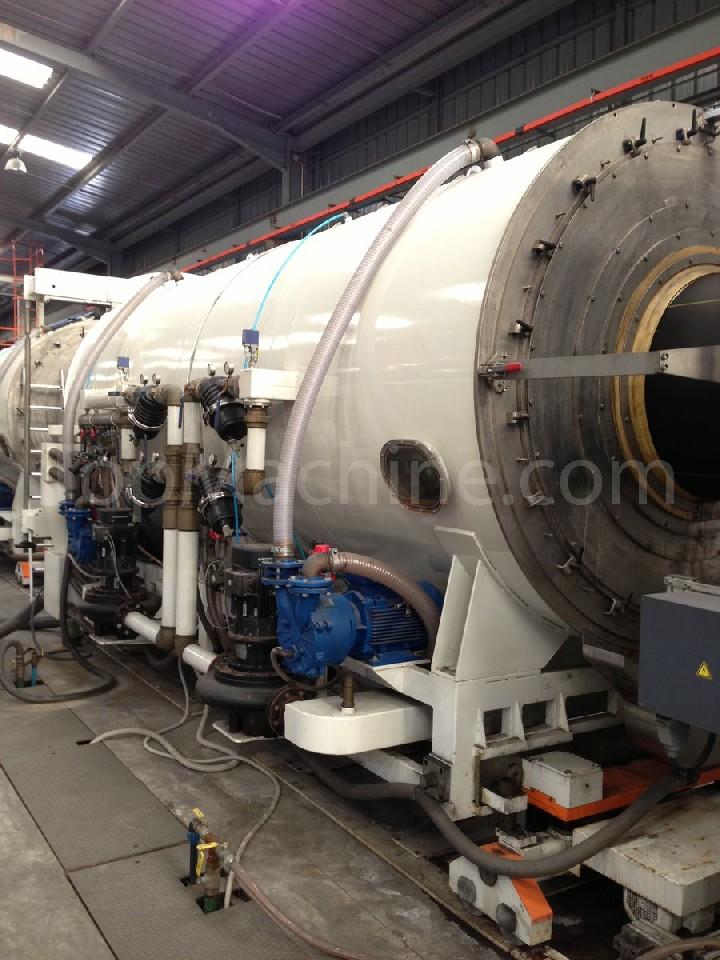

12 mtrs x 1600mm diam. vacuum tank.
630, 710, 800, 900, 1000 and 1200 mm calibrator sleeves.

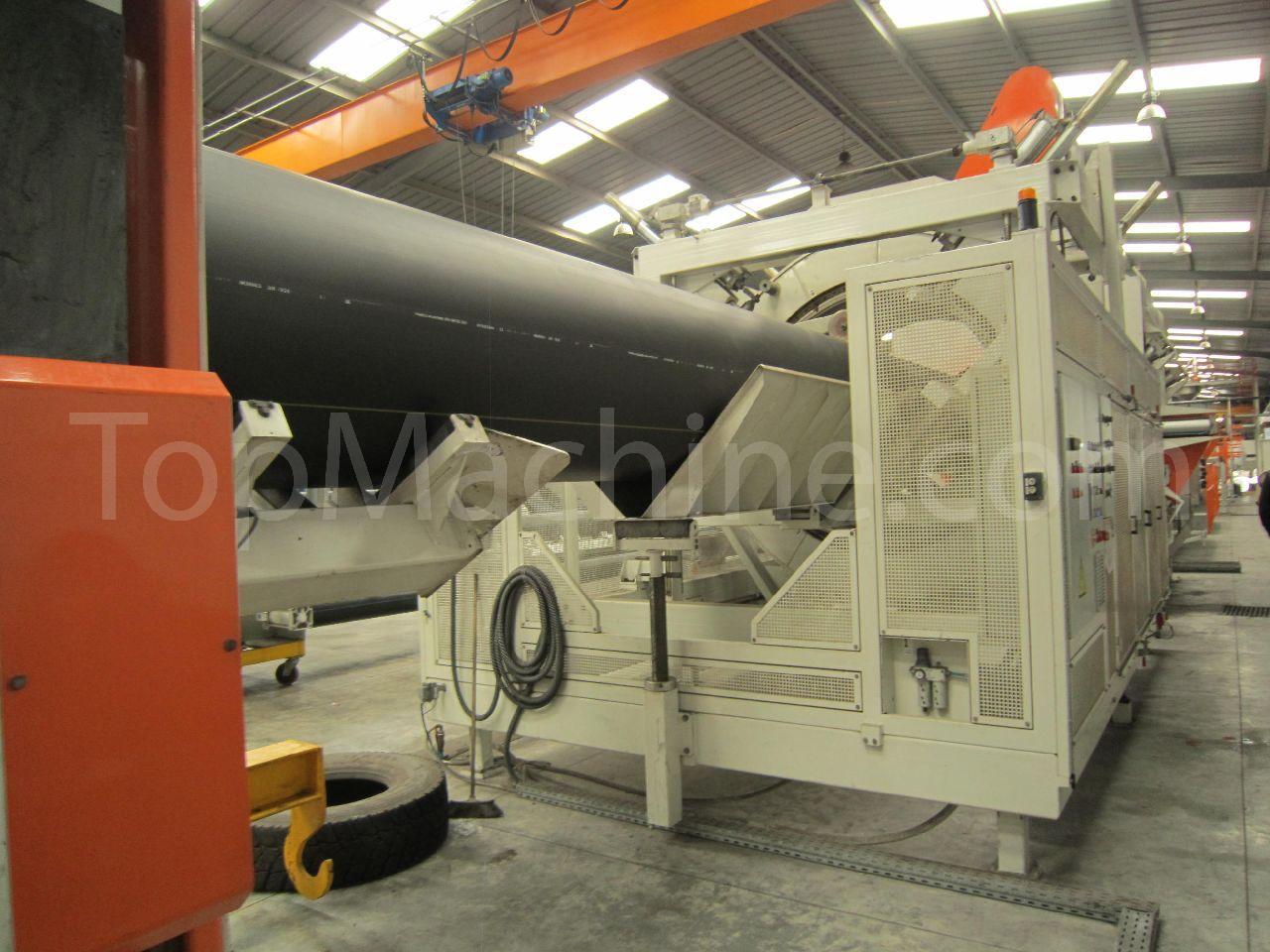

630 to 1600 mm saw.
12 mtrs x 2 cooling tanks.
Gnata marking unit.
12 caterpillar haul off
Planetary saw.
Collecting table and pipe winch
Request InformationMore Detail in PDF… pdf
